EGFX · FUNCTION 27ALPHA · USE AT YOUR OWN RISK
PROGRESS_BAR
Draw a progress bar.
Uses aligned position, dimensions, foreground/background, value/max and optional title.
Parameters
| Name | Order | Description |
|---|---|---|
X/Y | 8–10 | 8-pixel-aligned position. |
WIDTH/HEIGHT | 11–13 | Bar dimensions. |
FG/BG | 14–15 | Colours. |
VALUE/MAX | 16–19 | Progress values. |
TITLE | 22–63 | Optional inline title. |

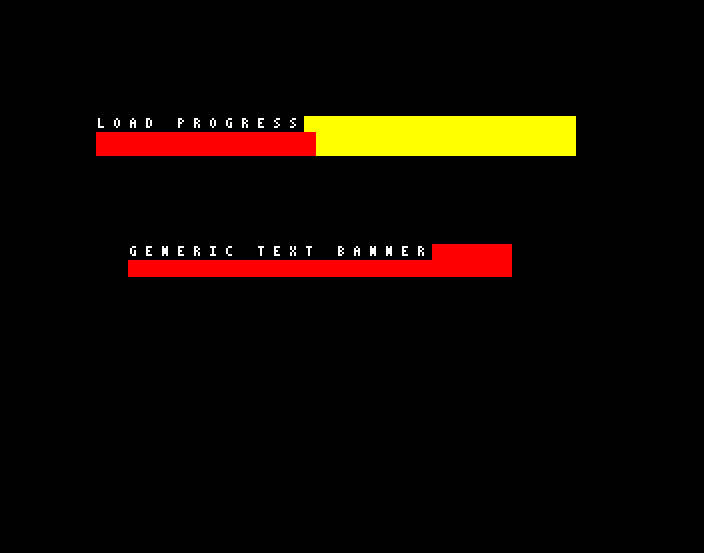

BASIC example
Tested listing: ui-demo.bas.
10 MODE 1:HIMEM=&2400:PROCeginit:t%=0
20 REPEAT:PROCegbegin
30 PROCegbar(32,48,240,12,t%,100,"LOAD PROGRESS",2,1)
40 PROCegbanner(48,112,24,"GENERIC TEXT BANNER",2)
50 t%=(t%+1) MOD 101:PROCegpresent:UNTIL INKEY(0)=81
60 END
Assembly example
JSR init_egfx
JSR begin_frame
LDA #27 : JSR eg_call
JSR present_frame
RTS
